TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE
| Cam Length |

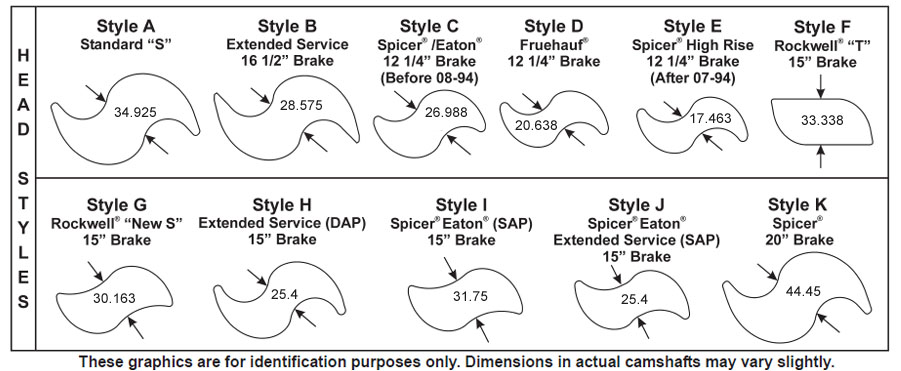

Head Style | Diameter at Spline End & No. of Spline | Diameter at Spider | Spicer Part Number | Side | Axle Type |
Brake Manufacturer |
Brake Size |
Notes |
|
| 249.238 | G | 31.75 | 10 | 31.75 | 18-948 18-949 | RH, LH | S | Rockwell | 381.0 | ''T'' Series Brake; New Style S-Head |
| 250.825 | B | 38.1 | 28 | 38.1 | 18-672 18-673 | RH ,LH | D | Spicer | 419.1 | ''XL'' and ''XLII'' Brakes; 5'' 6'' and 7'' Brakes |
| 250.825 | J | 31.75 | 10 | 31.75 | 18-976 18-977 | RH, LH | S | Eaton | 381.0 | Extended Service Brake (ES'') Single Anchor Pin (SAP) |
| 252.413 | G | 31.75 | 24 | 31.75 | 18-908 18-909 | RH ,LH | S | Rockwell | 381.0 | ''Q'' Brake; 2'' Offset Backing Plate |
| 258.763 | A | 38.1 | 10 | 38.1 | 18-732 18-733 | RH LH | D | Eaton | 419.1 | |
| 258.763 | B | 38.1 | 28 | 38.1 | 18-930 18-931 | RH ,LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 260.35 | A | 38.1 | 28 | 38.1 | 18-710 18-711 | RH, LH | D | Rockwell | 419.1 | |
| 260.35 | A | 38.1 | 10 | 38.1 | 18-784 18-785 | RH, LH | D | Rockwell | 419.1 | |
| 264.319 | B | 38.1 | 28 | 38.1 | 18-510 18-511 | RH, LH | D | Rockwell | 419.1 | '' Q Plus '' Brake |
| 265.906 | A | 38.1 | 28 | 38.1 | 18-648 18-649 | RH, LH | D | Spicer | 419.1 | 5'', 6'' and 7'' Brakes |
| 265.906 | B | 38.1 | 28 | 38.1 | 18-674 18-675 | RH, LH | D | Spicer | 419.1 | ''XL'' and XLII'' Brakes; 5'' 6'' and 7'' Brakes |
| 266.7 | B | 38.1 | 28 | 38.1 | 18-512 18-513 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 266.7 | A | 38.1 | 10 | 38.1 | 18-734 18-735 | RH, LH | D | Eaton | 419.1 | |
| 266.7 | A | 38.1 | 28 | 38.1 | 18-826 18-827 | RH, LH | D | Rockwell | 419.1 | |
| 268.288 | A | 38.1 | 10 | 38.1 | 18-806 18-807 | RH ,LH | D | Rockwell | 419.1 | |
| 268.288 | B | 38.1 | 10 | 38.1 | 18-982 18-983 | RH, LH | D | Rockwell | 419.1 | Extended Service Brake (ES) |
| 271.463 | A | 31.75 | 10 | 31.75 | 18-634 18-635 | RH, LH | S | Spicer | 381.0 | |
| 276.225 | A | 38.1 | 28 | 38.1 | 18-828 18-829 | RH, LH | D | Rockwell | 419.1 | |
| 277.019 | I | 31.75 | 10 | 31.75 | 18-776 18-777 | RH, LH | S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 277.019 | J | 31.75 | 10 | 31.75 | 18-978 18-979 | RH, LH | S | Eaton | 381.0 | Extended Service Brake (ES'') Single Anchor Pin (SAP) |
| 277.813 | B | 38.1 | 28 | 38.1 | 18-547 18-515 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 281.781 | A | 38.1 | 28 | 38.1 | 17-11055 17-11056 | RH, LH | T | Intraax | 419.1 | |
| 282.575 | B | 38.1 | 28 | 38.1 | 18-516 18-517 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 282.575 | A | 38.1 | 10 | 38.1 | 18-736 18-737 | RH LH | D | Eaton | 419.1 | |
| 282.575 | I | 31.75 | 10 | 31.75 | 18-778 18-779 | RH, LH | S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 282.575 | A | 38.1 | 28 | 38.1 | 18-798 18-799 | RH, LH | D | Rockwell | 419.1 | |
| 282.575 | J | 31.75 | 10 | 31.75 | 18-980 18-981 | RH ,LH | S | Eaton | 381.0 | Extended Service Brake (ES'') Single Anchor Pin (SAP) |
| 284.163 | A | 38.1 | 28 | 38.1 | 18-650 18-651 | RH, LH | D | Spicer | 419.1 | 5'', 6'' and 7'' Brakes |
| 284.163 | B | 38.1 | 28 | 38.1 | 18-676 18-677 | RH ,LH | D | Spicer | 419.1 | ''XL'' and XLII'' Brakes; 5'' 6'' and 7'' Brakes |
| 284.75 | A | 38.1 | 28 | 38.1 | 18-830 18-831 | RH, LH | D | Rockwell | 419.1 | |
| 286.544 | A | 38.1 | 10 | 38.1 | 18-808 18-809 | RH ,LH | D | Rockwell | 419.1 | |
| 292.1 | A | 38.1 | 28 | 38.1 | 18-652 18-653 | RH, LH | D | Spicer | 419.1 | 5'', 6'' and 7'' Brakes |
| 292.1 | A | 38.1 | 10 | 38.1 | 18-738 18-739 | RH ,LH | D | Eaton | 419.1 | |
| 292.1 | A | 38.1 | 10 | 38.1 | 18-810 18-811 | RH, LH | D | Rockwell | 419.1 | |
| 292.1 | A | 38.1 | 28 | 38.1 | 18-832 18-833 | RH, LH | D | Rockwell | 419.1 | |
| 292.1 | B | 38.1 | 10 | 38.1 | 18-942 18-943 | RH ,LH | D | Eaton | 419.1 | Extended Service Brake (ES) |
| 293.688 | B | 38.1 | 28 | 38.1 | 18-518 18-519 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 295.275 | A | 38.1 | 28 | 38.1 | 18-866 18-867 | RH, LH | D | Rockwell | 419.1 | |
| 296.863 | B | 38.1 | 28 | 38.1 | 18-520 18-521 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 298.45 | A | 38.1 | 10 | 38.1 | 18-786 18-787 | RH, LH | D | Rockwell | 419.1 | |
| 298.45 | F | 38.1 | 10 | 38.1 | 18-886 18-887 | RH ,LH | S | Rockwell | 381.0 | ''T'' Series Brake |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
