TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE

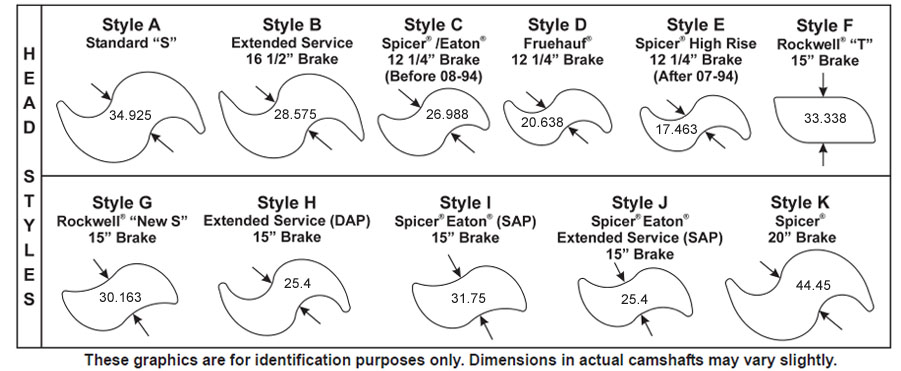

| Cam Length | Head Style | Diameter at Spline End & No. of Spline | Diameter at Spider |
Spicer Part Number |
Side | Axle Type | Brake Manufacturer |
Brake Size |
Notes |
|
| 303.213 | B | 38.1 | 28 | 38.1 | 18-522 18-523 | RH LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 306.388 | A | 38.1 | 10 | 38.1 | 18-852 18-853 | RH LH | D | Rockwell | 419.1 | |
| 307.975 | A | 38.1 | 10 | 38.1 | 18-708 18-709 | RH LH | D | Bendix | 419.1 | Brazilian Brake |
| 310.753 | A | 38.1 | 28 | 38.1 | 18-654 18-655 | RH LH | D | Spicer | 419.1 | 5'', 6'' and 7'' Brakes 127.0, 152.4 & 177.8 |
| 315.913 | B | 38.1 | 28 | 38.1 | 18-524 18-525 | RH LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 315.913 | B | 38.1 | 28 | 38.1 | 18-678 18-679 | RH LH | D | Spicer | 419.1 | ''XL'' and XLII'' Brakes; 5'' 6''
and 7'' Brakes 127.0 , 152.4 & 177.8 |
| 315.913 | A | 38.1 | 10 | 38.1 | 18-740 18-741 | RH LH | D | Eaton | 419.1 | |
| 317.5 | A | 38.1 | 10 | 38.1 | 18-812 18-813 | RH LH | D | Rockwell | 419.1 | |
| 317.5 | A | 38.1 | 28 | 38.1 | 18-868 18-869 | RH LH | D | Rockwell | 419.1 | |
| 317.5 | B | 38.1 | 10 | 38.1 | 18-984 18-985 | RH LH | D | Eaton | 419.1 | Extended Service Brake (ES'') |
| 328.613 | B | 38.1 | 28 | 38.1 | 18-526 18-527 | RH LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 328.613 | A | 38.1 | 28 | 38.1 | 18-656 18-657 | RH LH | D | Spicer | 419.1 | 5'', 6'' and 7'' Brakes 127.0, 152.4 & 177.8 |
| 328.613 | A | 38.1 | 28 | 38.1 | 18-836 18-837 | RH LH | D | Rockwell | 419.1 | |
| 330.2 | A | 38.1 | 10 | 38.1 | 18-748 18-749 | RH LH | D | Eaton | 419.1 | |
| 330.2 | A | 38.1 | 10 | 38.1 | 18-814 18-815 | RH LH | D | Rockwell | 419.1 | |
| 330.2 | B | 38.1 | 10 | 38.1 | 18-946 18-947 | RH LH | D | Eaton | 419.1 | Extended Service Brake (ES'') |
| 333.375 | A | 38.1 | 28 | 38.1 | 18-658, 18-659 | RH, LH | D | Spicer | 419.1 | 5'', 6'' and 7'' Brakes 127.0, 152.4 , & 177.8 |
| 334.963 | A | 38.1 | 28 | 38.1 | 18-820, 18-821 | RH, LH | D | Rockwell | 419.1 | |
| 335.756 | B | 38.1 | 28 | 38.1 | 18-528, 18-529 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 337.344 | B | 38.1 | 28 | 38.1 | 18-680, 18-681 | RH, LH | D | Spicer | 419.1 | ''XL'' and XLII'' Brakes; 5'' 6''
and 7'' Brakes 127.0, 152.4 & 177.8 |
| 341.313 | B | 38.1 | 28 | 38.1 | 18-530, 18-531 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 341.313 | A | 38.1 | 28 | 38.1 | 18-660, 18-661 | RH, LH | D | Spicer | 419.1 | 5'', 6'' and 7'' Brakes 127.0, 152.4 & 177.8 |
| 341.313 | A | 38.1 | 10 | 38.1 | 18-742, 18-743 | RH, LH | D | Eaton | 419.1 | |
| 341.313 | A | 38.1 | 28 | 38.1 | 18-822, 18-823 | RH, LH | D | Rockwell | 419.1 | |
| 342.106 | B | 38.1 | 10 | 38.1 | 18-994, 18-995 | RH, LH | D | Eaton | 457.2 | Extended Service Brake (ES'') |
| 342.9 | B | 38.1 | 28 | 38.1 | 18-532, 18-533 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 346.869 | A | 38.1 | 10 | 38.1 | 18-724, 18-725 | RH, LH | D | Rockwell | 419.1 | |
| 357.188 | A | 38.1 | 28 | 38.1 | 18-834, 18-835 | RH, LH | D | Rockwell | 419.1 | |
| 357.981 | B | 38.1 | 28 | 38.1 | 18-534, 18-535 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 358.775 | A | 38.1 | 10 | 38.1 | 18-816, 18-817 | RH, LH | D | Rockwell | 419.1 | |
| 358.775 | A | 38.1 | 10 | 38.1 | 18-746, 18-747 | RH, LH | D | Eaton | 419.1 | |
| 385.775 | B | 38.1 | 10 | 38.1 | 18-944, 18-945 | RH, LH | D | Eaton | 419.1 | Extended Service Brake (ES'') |
| 369.888 | B | 38.1 | 28 | 38.1 | 18-682, 18-683 | RH, LH | D | Spicer | 419.1 | ''XL'' and XLII'' Brakes; 5'' 6''
and 7'' Brakes 127.0 , 152.4 & 177.8 |
| 369.888 | A | 38.1 | 10 | 38.1 | 18-754, 18-755 | RH, LH | D | Eaton | 419.1 | |
| 370.681 | B | 38.1 | 28 | 38.1 | 18-536, 18-537 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 370.681 | A | 38.1 | 28 | 38.1 | 18-780, 18-781 | RH, LH | D | Rockwell | 419.1 | |
| 374.65 | B | 38.1 | 28 | 38.1 | 18-538, 18-539 | RH, LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 377.825 | A | 38.1 | 10 | 38.1 | 18-790, 18-791 | RH, LH | D | Rockwell | 419.1 | |
| 381.0 | A | 38.1 | 10 | 38.1 | 18-744, 18-745 | RH, LH | D | Eaton | 419.1 | |
| 381.0 | A | 38.1 | 28 | 38.1 | 18-878, 18-879 | RH, LH | D | Rockwell | 419.1 | |
| 382.588 | B | 38.1 | 10 | 38.1 | 18-996, 18-997 | RH, LH | D | Eaton | 419.1 & 457 | Extended Service Brake (ES'') |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
