TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE

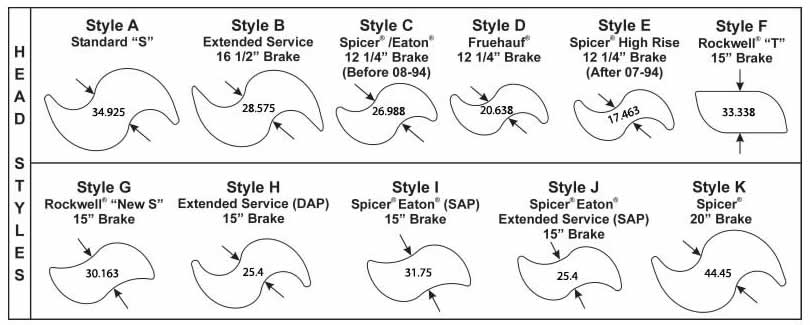

| Cam Length | Head Style | Diameter at Spline End & No. of Splines |
Diameter at Spider |
Spicer Parts Number |
Side | Axle Type* | Brake Manufacturer |
Brake Size | Notes | |
| 450.85 | B | 38.1 | 10 | 38.1 | 17-544 17-545 |
RH LH |
T | Spicer | 311.15 | "XL" Brake; Double Groove |
| 450.85 | A | 38.1 | 10 | 38.1 | 17-572 17-573 |
RH LH |
T | Multi-App. | 311.15 | |
| 450.85 | B | 38.1 | 10 | 41.275 | 17-846 17-847 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After September 1995; "XL" Brake; Double Groove; |
| 457.2 | E | 38.1 | 28 | 41.275 | 17-404 17-405 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After February 1996; Double Groove |
| 457.2 | C | 38.1 | 10 | 41.275 | 17-678 17-679 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured Before August 1994; Double Groove |
| 457.2 | E | 38.1 | 10 | 38.1 | 17-740 17-741 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After July 1994; Double Groove |
| 457.2 | E | 38.1 | 28 | 38.1 | 17-788 17-789 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After July 1994; Double Groove |
| 457.2 | E | 38.1 | 10 | 38.1 | 17-964 17-965 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After February 1996; Double Groove |
| 466.725 | B | 38.1 | 10 | 41.275 | 17-546 17-547 |
RH LH |
T | Spicer | 311.15 | "XL" Brake; Double Groove |
| 466.725 | A | 38.1 | 10 | 38.1 | 17-566 17-567 |
RH LH |
T | Multi-App. | 311.15 | |
| 466.725 | B | 38.1 | 10 | 38.1 | 17-848 17-849 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After September 1995; |
| 473.075 | B | 38.1 | 10 | 41.275 | 17-548 17-549 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 473.075 | A | 38.1 | 10 | 38.1 | 17-578 17-579 |
RH LH |
T | Multi-App. | 311.15 | |
| 473.075 | B | 38.1 | 10 | 38.1 | 17-850 17-851 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After September 1995; "XL"; Double Groove |
| 479.425 | E | 38.1 | 28 | 41.275 | 17-406 17-407 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 479.425 | C | 38.1 | 10 | 41.275 | 17-676 17-677 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 479.425 | E | 38.1 | 10 | 38.1 | 17-744 17-745 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 479.425 | E | 38.1 | 28 | 38.1 | 17-792 17-793 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 479.425 | E | 38.1 | 10 | 41.275 | 17-966 17-967 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 492.125 | B | 38.1 | 10 | 41.275 | 17-460 17-461 |
RH LH |
T | Eaton | 419.1 | Extended Service Brake (ES™) |
| 492.125 | B | 38.1 | 28 | 41.275 | 17-470 17-471 |
RH LH |
T | Eaton | 419.1 | Extended Service Brake (ES™) |
| 495.3 | B | 38.1 | 10 | 38.1 | 17-536 17-537 |
RH LH |
T | Spicer | 419.1 | |
| 495.3 | A | 38.1 | 10 | 41.275 | 7-634 7-635 |
RH LH |
T | Eaton | 419.1 | "XL" Brake; Double Groove |
| 495.3 | A | 38.1 | 10 | 38.1 | 18-752 18-753 |
RH LH |
T | Eaton | 419.1 | 501 Series |
| 495.3 | C | 38.1 | 10 | 38.1 | 17-688 17-689 |
RH LH |
T | Spicer | 311.15 | Air Lift Tag Axle |
| 508.0 | E | 38.1 | 10 | 38.1 | 17-746 17-747 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 508.0 | E | 38.1 | 10 | 41.275 | 17-968 17-969 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 508.0 | A | 38.1 | 28 | 41.275 | 17-638 17-639 |
RH LH |
T | Eaton | 419.1 | Axles Manufactured After February 1996; Double Groove |
| 513.556 | E | 38.1 | 28 | 38.1 | 17-11059 17-11060 |
RH LH |
T | Dexter | 311.15 | 501 Series |
| 515.936 | C | 38.1 | 10 | 38.1 | 17-682 17-683 |
RH LH |
T | Eaton/ Shuler | 311.15 | |
| 515.936 | E | 38.1 | 28 | 41.275 | 17-700 17-701 |
RH LH |
T | Rockwell | 311.15 | Double Groove |
| 515.936 | E | 38.1 | 10 | 41.275 | 17-714 17-715 |
RH LH |
T | Rockwell | 311.5 | |
| 515.936 | E | 38.1 | 10 | 38.1 | 17-748 17-749 |
RH LH |
T | Spicer | 311.15 | |
| 515.936 | E | 38.1 | 10 | 41.275 | 17-970 17-971 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 515.936 | A | 38.1 | 10 | 38.1 | 17-11071 17-11072 |
RH LH |
T | Eaton/ Shuler | 419.1 | Axles Manufactured After February 1996; Double Groove |
| 517.525 | E | 38.1 | 28 | 41.275 | 17-408 17-409 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 517.525 | A | 38.1 | 28 | 38.1 | 17-480 17-481 |
RH LH |
T | Spicer | 419.1 | |
| 517.525 | B | 38.1 | 28 | 38.1 | 17-500 17-501 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 517.525 | B | 38.1 | 10 | 38.1 | 17-504 17-505 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 517.525 | A | 38.1 | 10 | 38.1 | 17-580 17-581 |
RH LH |
T | Multi-App. | 419.1 | Double Groove |
| 517.525 | K | 44.45 | 10 | 44.45 | 17-670 17-671 |
RH LH |
T | Spicer | 508.0 | Severe Duty; Cast Iron Shoe |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
