TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE

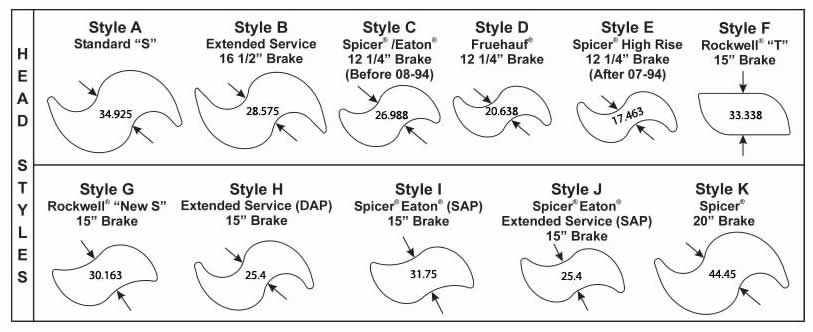

| Cam Length | Head Style | Diameter at Spline
End & No. of Splines |
Diameter at Spider |
Spicer Parts Number |
Side | Axle Type* | Brake Manufacturer |
Brake Size | Notes | |
| 517.525 | E | 38.1 | 28 | 38.1 | 17-794 17-795 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 517.525 | B | 38.1 | 10 | 41.275 | 17-852 17-853 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 517.525 | B | 38.1 | 28 | 41.275 | 17-920 17-921 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake |
| 579.113 | B | 38.1 | 28 | 41.275 | 17-722 17-723 |
RH LH |
T | Rockwell | 419.1 | "Q Plus" Brake; Forged or Fabricated Spiders |
| 519.906 | A | 38.1 | 10 | 41.275 | 17-632 17-633 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-6000 Series; Cast Spider |
| 520.7 | E | 38.1 | 28 | 41.275 | 17-402 17-403 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 520.7 | A | 38.1 | 28 | 41.275 | 17-628 17-629 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-6000 Series; Cast Spider |
| 520.7 | A | 38.1 | 28 | 41.275 | 17-658 17-659 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-6000 Series; Fabricated Spider |
| 520.7 | C | 38.1 | 10 | 38.1 | 17-680 17-681 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Befor August 1994; Double Groove |
| 520.7 | E | 38.1 | 10 | 38.1 | 17-750 17-751 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 520.7 | B | 38.1 | 28 | 41.275 | 17-812 17-813 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-6000 Series; "Q Plus" Brake; Cast Spider |
| 520.7 | E | 38.1 | 10 | 41.275 | 17-972 17-973 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 536.575 | E | 38.1 | 28 | 38.1 | 17-11061 17-11062 |
RH LH |
T | Dexter | 311.15 | |
| 536.575 | E | 38.1 | 28 | 41.275 | 17-410 17-411 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 536.575 | C | 38.1 | 28 | 38.1 | 17-438 17-439 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Befor August 1994; Double Groove |
| 536.575 | B | 38.1 | 10 | 38.1 | 17-550 17-551 |
RH LH |
T | Spicer | 419.1 | "XL" Brake Double Groove |
| 536.575 | A | 38.1 | 10 | 38.1 | 17-582 17-583 |
RH LH |
T | Multi-App | 419.1 | |
| 536.575 | A | 37.306 | 37 | 41.275 | 17-622 17-623 |
RH LH |
T | Fruehauf | 419.1 | "Pro-Par" Type Axle; Air Ride |
| 536.575 | C | 38.1 | 10 | 38.1 | 17-684 17-685 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 536.575 | E | 38.1 | 10 | 38.1 | 17-752 17-753 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 536.575 | E | 38.1 | 28 | 38.1 | 17-780 17-781 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 536.575 | B | 38.1 | 10 | 41.275 | 17-854 17-855 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 536.575 | E | 38.1 | 10 | 41.275 | 17-974 17-975 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 538.163 | D | 37.306 | 37 | 41.275 | 17-618 17-619 |
RH LH |
T | Fruehauf | 311.15 | "Pro-Par" Type Axle; Air Ride |
| 539.75 | E | 38.1 | 28 | 41.275 | 17-414 17-415 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 539.75 | C | 38.1 | 10 | 38.1 | 17-686 17-687 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 539.75 | E | 38.1 | 10 | 38.1 | 17-754 17-755 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 539.75 | E | 38.1 | 28 | 38.1 | 17-786 17-787 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 539.75 | E | 38.1 | 10 | 41.275 | 17-976 17-977 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 542.925 | B | 38.1 | 28 | 41.275 | 17-922 17-923 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 558.8 | E | 38.1 | 28 | 41.275 | 17-412 17-413 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 558.8 | B | 38.1 | 10 | 38.1 | 17-562 17-563 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 558.8 | C | 38.1 | 10 | 38.1 | 17-692 17-693 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Befor August 1994; Double Groove |
| 558.8 | E | 38.1 | 10 | 38.1 | 17-756 17-757 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 558.8 | E | 38.1 | 28 | 38.1 | 17-796 17-797 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 558.8 | B | 38.1 | 10 | 41.275 | 17-856 17-857 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 558.8 | E | 38.1 | 10 | 41.275 | 17-978 17-979 |
RH LH |
T | Dexter | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 560.388 | A | 38.1 | 10 | 38.1 | 17-598 17-599 |
RH LH |
T | Multi-App | 419.1 | Double Groove |
| 566.738 | E | 38.1 | 28 | 38.1 | 17-11063 17-11064 |
RH LH |
T | Dexter | 311.15 | |
| 566.738 | C | 38.1 | 10 | 38.1 | 17-698 17-699 |
RH LH |
T | Eaton/Shuler | 311.15 | Double Groove |
| 566.738 | E | 38.1 | 10 | 38.1 | 17-758 17-759 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
