TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE

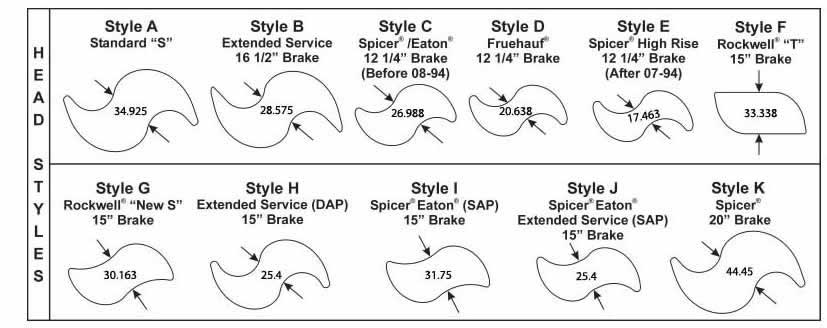

| Cam Length | Head Style | Diameter at
Spline End & No. of Splines |
Diameter at Spider |
Spicer Parts Number |
Side | Axle Type* | Brake Manufacturer | Brake Size | Notes | |
| 606.425 | C | 38.1 | 10 | 38.1 | 17-694 17-695 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 606.425 | E | 38.1 | 10 | 38.1 | 17-764 17-765 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 606.425 | E | 38.1 | 28 | 38.1 | 17-798 17-799 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 606.425 | E | 38.1 | 10 | 41.275 | 17-986 17-987 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 609.6 | B | 38.1 | 10 | 38.1 | 17-506 17-507 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 609.6 | B | 38.1 | 28 | 38.1 | 17-514 17-515 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 609.6 | A | 38.1 | 10 | 38.1 | 17-586 17-587 |
RH LH |
T | Multi-App | 419.1 | |
| 609.6 | K | 44.45 | 10 | 44.45 | 17-672 17-673 |
RH LH |
T | Spicer | 508.0 | Server Duty; Cast Iron Shoe |
| 609.6 | B | 38.1 | 10 | 41.275 | 17-864 17-865 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 609.6 | B | 38.1 | 28 | 41.275 | 17-930 17-931 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake |
| 611.188 | B | 38.1 | 28 | 41.275 | 17-724 17-725 |
RH LH |
T | Rockwell | 419.1 | "Q Plus" Brake; Forged or Fabricated Spiders; Air Ride |
| 612.775 | A | 38.1 | 28 | 41.275 | 17-630 17-631 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-600 Series; Air Ride; Cast Spider |
| 612.775 | A | 38.1 | 10 | 41.275 | 17-642 17-643 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-600 Series; Air Ride; Cast Spider |
| 612.775 | A | 38.1 | 28 | 41.275 | 17-660 17-661 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-600 Series; Air Ride; Faricated Spider |
| 612.775 | B | 38.1 | 28 | 41.275 | 17-814 17-815 |
RH LH |
T | Rockwell | 419.1 | Rockwell 4000-600 Series; "Q Plus" Brake; Air Ride; Cast Spider |
| 619.125 | B | 38.1 | 10 | 38.1 | 17-554 17-555 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 619.125 | A | 38.1 | 10 | 38.1 | 17-588 17-589 |
RH LH |
T | Multi-App | 419.1 | |
| 619.125 | B | 38.1 | 10 | 41.275 | 17-866 17-867 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 625.475 | E | 38.1 | 28 | 38.1 | 17-11067 17-11068 |
RH LH |
T | Spicer | 311.15 | |
| 625.475 | C | 38.1 | 10 | 38.1 | 17-648 17-649 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 625.475 | E | 38.1 | 10 | 38.1 | 17-766 17-767 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 625.475 | E | 38.1 | 10 | 41.275 | 17-988 17-989 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 628.65 | B | 38.1 | 10 | 38.1 | 17-534 17-535 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 641.35 | C | 38.1 | 10 | 38.1 | 17-706 17-707 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 641.35 | E | 38.1 | 10 | 38.1 | 17-768 17-769 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 641.35 | E | 38.1 | 10 | 41.275 | 17-990 17-991 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 654.05 | B | 38.1 | 10 | 38.1 | 17-538 17-539 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 654.05 | A | 38.1 | 10 | 38.1 | 17-596 17-597 |
RH LH |
T | Multi-App | 419.1 | |
| 654.05 | B | 38.1 | 10 | 41.275 | 17-868 17-869 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 660.4 | B | 38.1 | 28 | 38.1 | 17-492 17-493 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 666.75 | E | 38.1 | 28 | 41.275 | 17-424 17-425 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 666.75 | B | 38.1 | 28 | 38.1 | 17-526 17-527 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 666.75 | B | 38.1 | 10 | 38.1 | 17-556 17-557 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 666.75 | A | 38.1 | 10 | 38.1 | 17-590 17-591 |
RH LH |
T | Multi-App | 419.1 | |
| 666.75 | C | 38.1 | 10 | 38.1 | 17-708 17-709 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 666.75 | E | 38.1 | 10 | 38.1 | 17-770 17-771 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 666.75 | E | 38.1 | 28 | 38.1 | 17-804 17-805 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 666.75 | B | 38.1 | 10 | 41.275 | 17-870 17-871 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 666.75 | B | 38.1 | 28 | 41.275 | 17-936 17-937 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake |
| 666.75 | E | 38.1 | 10 | 41.275 | 17-992 17-993 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 673.1 | E | 38.1 | 28 | 38.1 | 17-11069 17-11070 |
RH LH |
T | Dexter | 311.15 | |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
