TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE

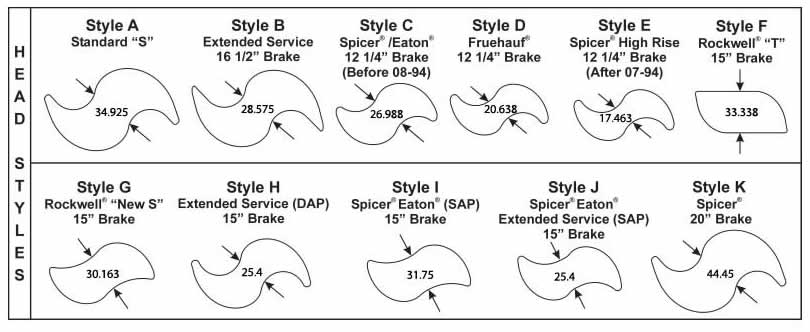

| Cam Length | Head Style | Diameter at Spline End & No. of Splines |
Diameter at Spider |
Spicer Parts Number |
Side | Axle Type* | Brake Manufacturer |
Brake Size | Notes | |
| 566.738 | E | 38.1 | 10 | 41.275 | 17-980 17-981 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 568.325 | A | 38.1 | 10 | 38.1 | 17-584 17-585 |
RH LH |
T | Multi-App | 419.1 | |
| 568.325 | B | 38.1 | 28 | 41.275 | 17-932 17-933 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 574.675 | B | 38.1 | 28 | 38.1 | 17-524 17-525 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 574.675 | B | 38.1 | 10 | 38.1 | 17-552 17-553 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 574.675 | B | 38.1 | 10 | 41.275 | 17-858 17-859 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake |
| 574.675 | B | 38.1 | 28 | 41.275 | 17-924 17-925 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" |
| 581.025 | A | 38.1 | 28 | 38.1 | 17-484 17-485 |
RH LH |
T | Spicer | 419.1 | |
| 581.025 | B | 38.1 | 28 | 38.1 | 17-510 17-511 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 581.025 | B | 38.1 | 10 | 38.1 | 17-518 17-519 |
RH LH |
T | Multi-App | 419.1 | "XL" Brake Double Groove |
| 581.025 | A | 38.1 | 10 | 38.1 | 17-594 17-595 |
RH LH |
T | Spicer | 419.1 | |
| 581.025 | B | 38.1 | 10 | 41.275 | 17-860 17-861 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 581.025 | B | 38.1 | 28 | 41.275 | 17-926 17-927 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake |
| 587.375 | E | 38.1 | 28 | 41.275 | 17-416 17-417 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; Double Groove |
| 587.375 | C | 38.1 | 28 | 38.1 | 17-442 17-443 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 587.375 | E | 38.1 | 10 | 38.1 | 17-738 17-739 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 587.375 | E | 38.1 | 28 | 38.1 | 17-782 17-783 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 587.375 | E | 38.1 | 10 | 41.275 | 17-996 17-997 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 590.55 | E | 38.1 | 28 | 41.275 | 17-420 17-421 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 590.55 | C | 38.1 | 10 | 38.1 | 17-690 17-691 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 590.55 | E | 38.1 | 10 | 38.1 | 17-760 17-761 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 590.55 | E | 38.1 | 28 | 38.1 | 17-778 17-789 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 590.55 | E | 38.1 | 10 | 41.275 | 17-982 17-983 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After |
| 592.138 | E | 38.1 | 28 | 41.275 | 17-702 17-703 |
RH LH |
T | Rockwell | 311.15 | |
| 592.138 | E | 38.1 | 10 | 41.275 | 17-716 17-717 |
RH LH |
T | Rockwell | 311.15 | |
| 593.725 | E | 38.1 | 28 | 38.1 | 17-11065 17-11066 |
RH LH |
T | Dexter | 311.15 | |
| 595.313 | A | 38.1 | 10 | 38.1 | 17-574 17-575 |
RH LH |
T | Multi-App | 419.1 | |
| 596.9 | A | 38.1 | 28 | 38.1 | 17-482 17-483 |
RH LH |
T | Spicer | 419.1 | |
| 596.9 | B | 38.1 | 28 | 38.1 | 17-502 17-503 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 596.9 | B | 38.1 | 10 | 38.1 | 17-508 17-509 |
RH LH |
T | Spicer | 419.1 | "XL" Brake; Double Groove |
| 596.9 | C | 38.1 | 10 | 38.1 | 17-710 17-711 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured Before August 1994; Double Groove |
| 596.9 | E | 38.1 | 10 | 38.1 | 17-762 17-763 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After July 1994; Double Groove |
| 596.9 | B | 38.1 | 10 | 41.275 | 17-862 17-863 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake; Double Groove |
| 596.9 | B | 38.1 | 28 | 41.275 | 17-928 17-929 |
RH LH |
T | Spicer | 419.1 | Axles Manufactured After September 1995; "XL" Brake |
| 596.9 | E | 38.1 | 10 | 41.275 | 17-984 17-985 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 600.075 | B | 38.1 | 10 | 41.275 | 17-462 17-463 |
RH LH |
T | Eaton | 419.1 | Extended Service Brake (ES '") |
| 600.075 | B | 38.1 | 28 | 41.275 | 17-472 17-473 |
RH LH |
T | Eaton | 419.1 | Extended Service Brake (ES '") |
| 603.25 | A | 38.1 | 10 | 41.275 | 17-636 17-637 |
RH LH |
T | Eaton | 419.1 | 501 Series |
| 606.425 | E | 38.1 | 28 | 41.275 | 17-418 17-419 |
RH LH |
T | Spicer | 311.15 | Axles Manufactured After February 1996; "Double Groove |
| 606.425 | B | 38.1 | 28 | 38.1 | 17-490 17-491 |
RH LH |
T | Spicer | 419.1 | "XL" Brake |
| 606.425 | A | 40.481 | 37 | 41.275 | 17-616 17-617 |
RH LH |
T | Fruehauf | 419.1 | "Pro-Par"Type Axle; Air Ride |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
